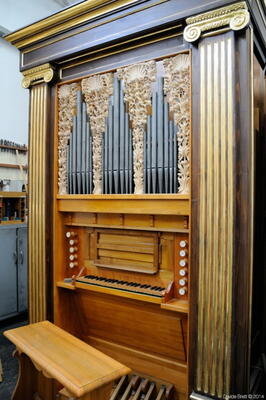

data
- Year of construction
- 2018
- number of manuals
- 1
- manuals
- C-c'''
- pedal
- C-f
- system
- mechanical
- stop action mechanism
- mechanical
- Register
- 8
- Principle-base
- 8
-

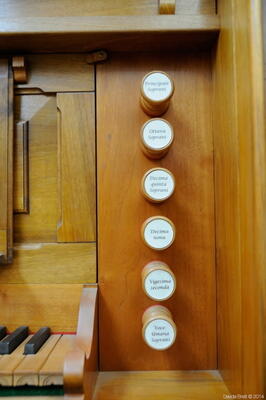

disposition

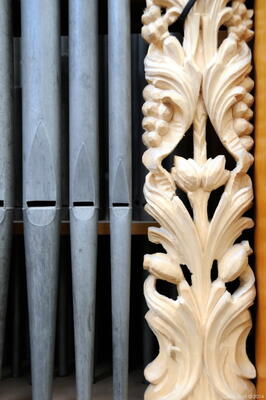

Principale 8' bass (open) wood, 20 pipes
Principale 8' diskant tin, 25 pipes **
Ottava 4' bass tin, 20 pipes
Ottava 4' Diskant tin 25 pipes
Decimaquinta 2' bass tin 20 pipes **
Decimaquinta 2' diskant tin 25 pipes **
Decimanona 1 1/3' tin 45 pipes **
Vigesimaseconda 1' tin 45 pipes **
Flauto in Ottava 4' diskant tin 25 pipes
Flauto in Duodecima 2 2/3' diskant tin 25 pipes
Voce umana diskant tin 25 pipes
-
remarks
the stops with ** are historic stops (pipes)

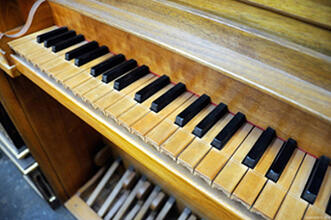

short octave

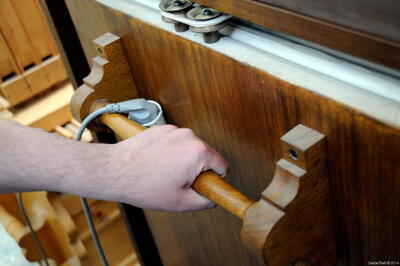

bellows can be feeded by hand, but also blower included.
pedal board in old italian manner with short octave.
sliders devided between h and c'
300 pipes
ideal for old italian music
wind pressure: 50mm
tuned in Tartini/Valotti
price is without VAT and without transport (location Italy, Milano)
